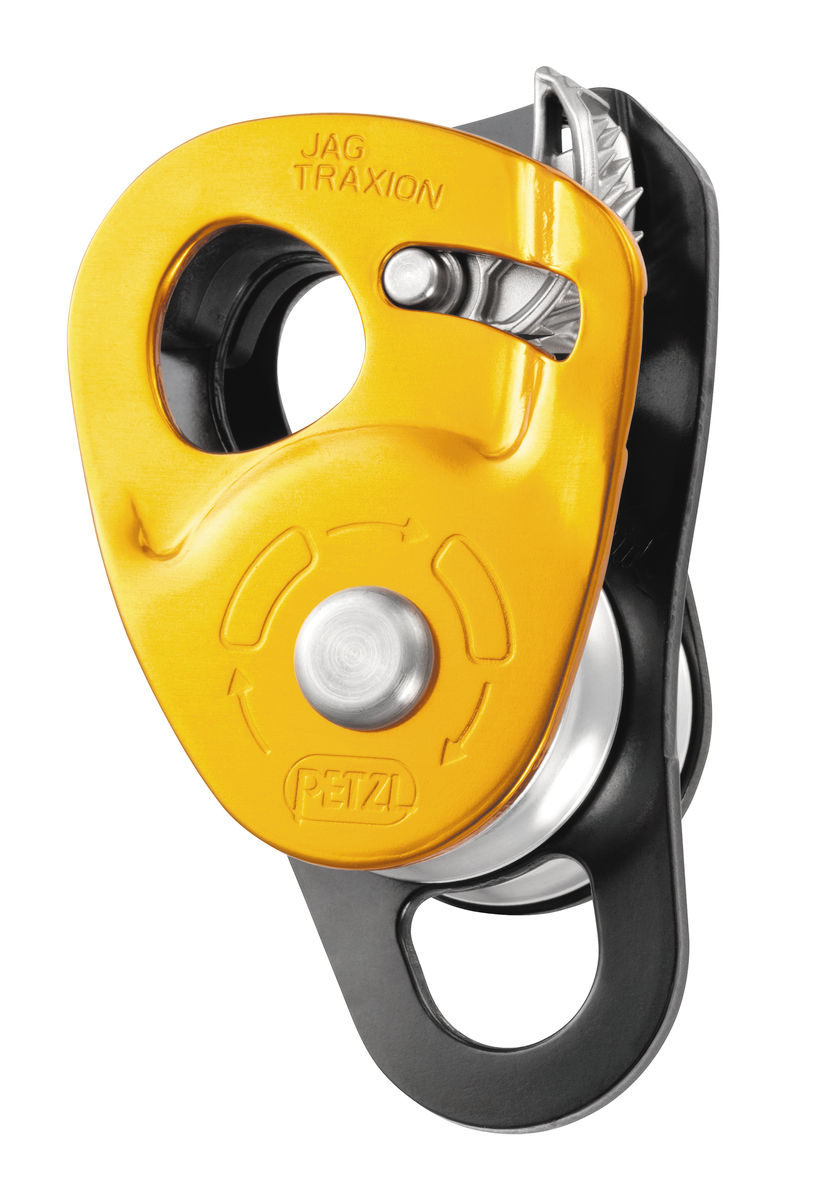

Petzl Jag Traxion
$164.95
The Petzl JAG TRAXION is a high efficiency double progress capture pulley designed for use with the JAG pulley to create a 4:1 haul system. Its toothed cam with a self cleaning slot provides reliable rope grip in dirty or icy conditions, while the 25 mm sheave with sealed ball bearings delivers 91% efficiency. Compatible with 8 to 11 mm rope, the JAG TRAXION has a 6 kN maximum working load and is certified to CE EN 567, UKCA, and NFPA 2500 Technical Use.
Available on backorder
The JAG TRAXION double progress capture pulley is designed for use with the JAG pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.
- Designed for use with the JAG double pulley to make a 4:1 haul system
- Toothed cam with self-cleaning slot optimizes performance under any conditions (frozen or muddy ropes...)
- Sheave mounted on sealed ball bearings for excellent efficiency
Specifications
- Weight: 145 g
- Certification(s): CE EN 567, UKCA, NFPA 2500 Technical Use
- Material(s): aluminum, nylon
- Min. rope diameter: 8 mm
- Max. rope diameter: 11 mm
- Sheave type: sealed ball bearings
- Sheave diameter: 25 mm
- Maximum working load: 2 × 1,5 kN × 2 = 6 kN
- Breaking strength: 2 × 4 kN × 2 = 16 kN
- Efficiency: 91 %
Specifications
- Weight: 145 g
- Certification(s): CE EN 567, UKCA, NFPA 2500 Technical Use
- Material(s): aluminum, nylon
- Min. rope diameter: 8 mm
- Max. rope diameter: 11 mm
- Sheave type: sealed ball bearings
- Sheave diameter: 25 mm
- Maximum working load: 2 × 1,5 kN × 2 = 6 kN
- Breaking strength: 2 × 4 kN × 2 = 16 kN
- Efficiency: 91 %
