CAMP Dryad Pulley

$54.95

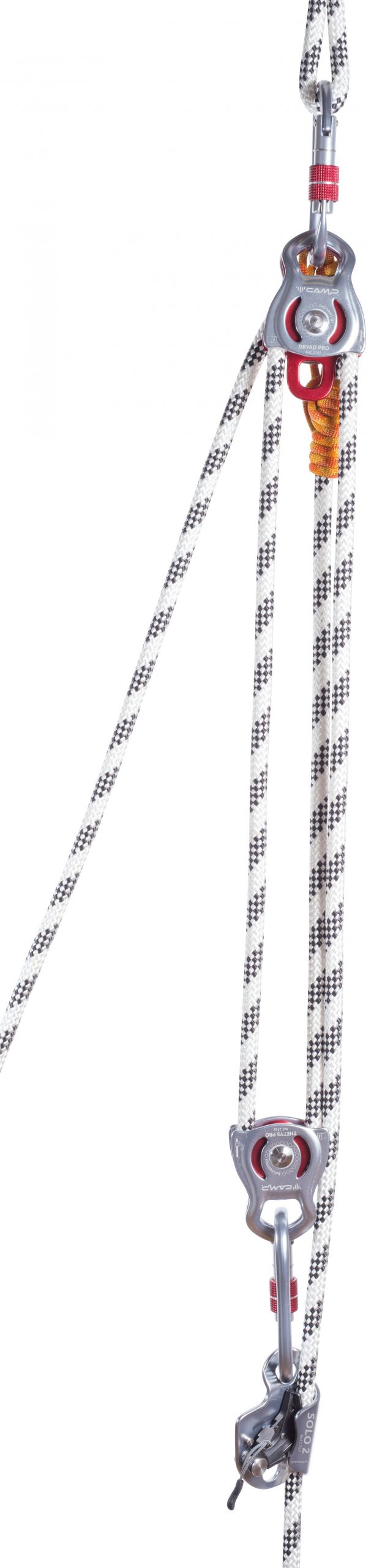

The CAMP Dryad Pulley is a compact double pulley designed for block and tackle systems, rescue work, and light hauling applications. Its aluminum alloy body and sheaves pair with self lubricating brass bushings for smooth operation, while the main attachment point accepts two carabiners and the lower becket allows additional system connections. The pulley works with ropes up to 13 mm, provides 80% efficiency, and has a 4 kN maximum working load with a 24 kN breaking strength.

In stock

SKU: 2156

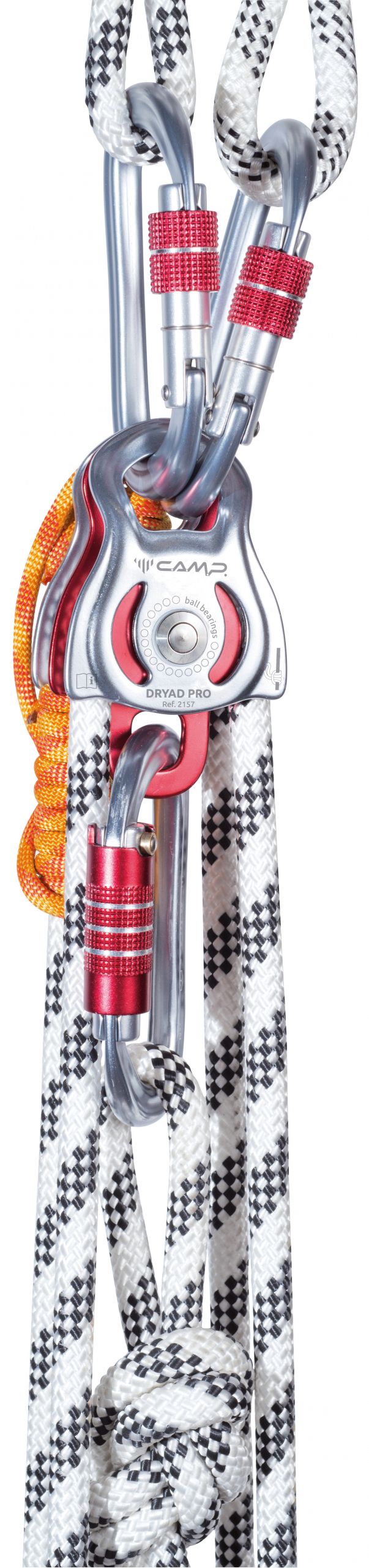

Compact double pulley for block-and-tackle systems. Main attachment point accommodates two carabiners and the becket features a bottom attachment point for linking components in a block-and-tackle system. For use with ropes up to 13 mm. Prusik minding, the self-locking knot can be installed on both sides of both wheels. Self-lubricated brass bushings are sufficient for light applications at low speed. Efficiency: 80%. Aluminum alloy body and wheels, stainless steel axle.

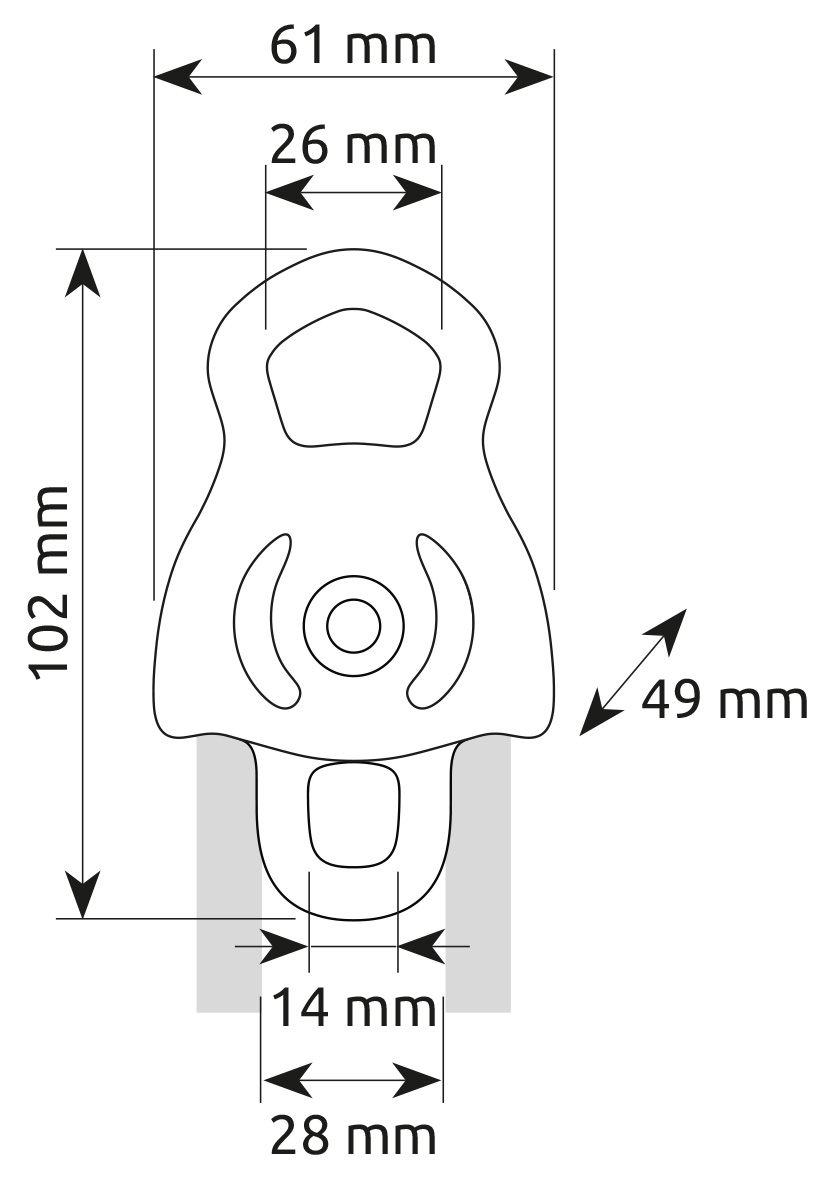

Ref. Product name Weight Inner sheave diameter Rope diameter Max Working load Max Breaking load Brass bushing Sheave material CE EAC
g oz mm mm kN LBF kN LBF EN 12278
2156 DRYAD 170 6.0 28 13 1 kN x 4 = 4 kN 225 LBF x 4 = 900 LBF 24 5396 • Aluminum alloy • •
