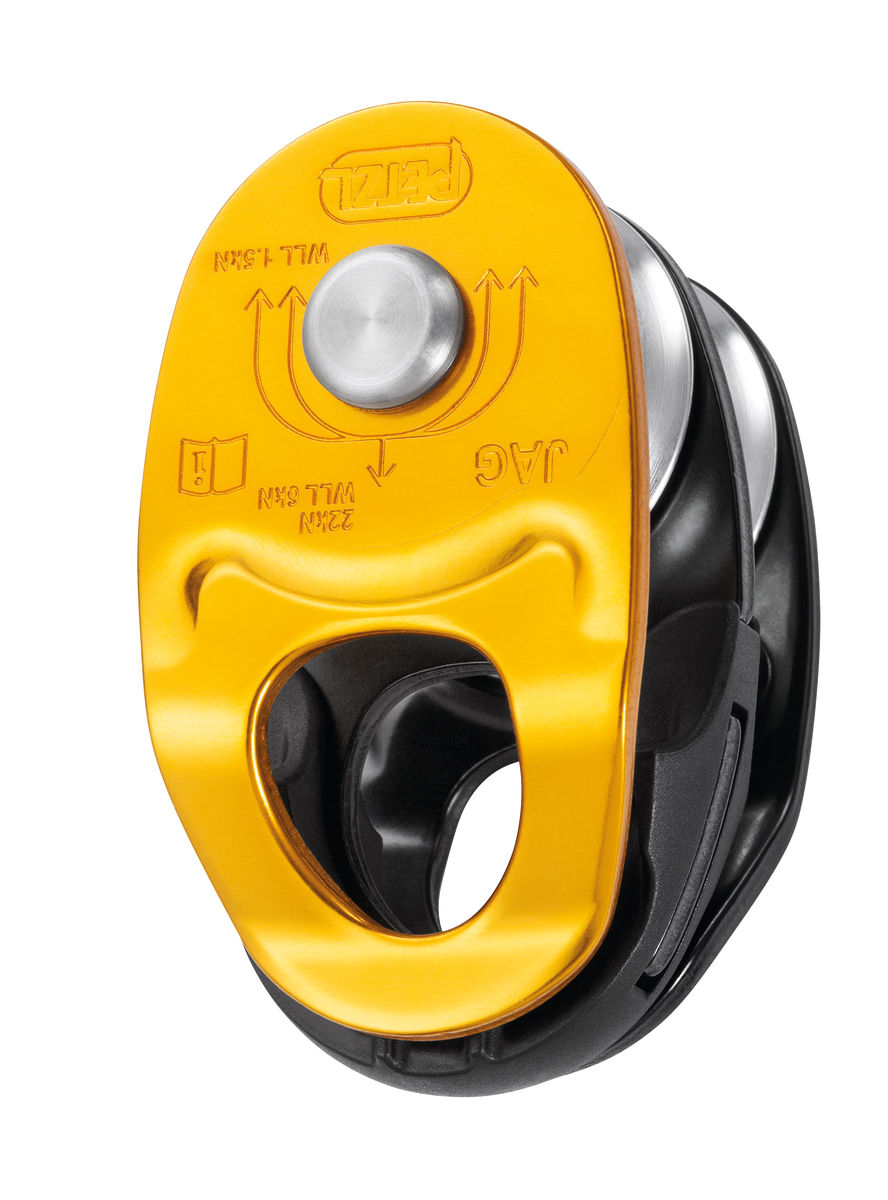

Petzl Jag Twin Pulley

$100.95

The Petzl JAG Twin Pulley is a high efficiency double pulley designed for use with the JAG TRAXION to create a 4:1 haul system. Twin 25 mm sheaves with sealed ball bearings provide 91% efficiency, while the compact aluminum construction keeps weight to 120 g. Compatible with 8 to 11 mm rope, the JAG Twin Pulley has a 6 kN maximum working load and is certified to CE EN 12278, UKCA, and NFPA 2500 Technical Use.

In stock (can be backordered)

SKU: P45

High-efficiency double pulley

The JAG double pulley is designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.

  • Designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system
  • Sheaves mounted on sealed ball bearings for excellent efficiency

Specifications

  • Weight: 120 g
  • Certification(s): CE EN 12278, UKCA, NFPA 2500 Technical Use
  • Material(s): aluminum, nylon
  • Min. rope diameter: 8 mm
  • Max. rope diameter: 11 mm
  • Sheave type: sealed ball bearings
  • Sheave diameter: 25 mm
  • Maximum working load: 2 × 1,5 kN × 2 = 6 kN
  • Breaking strength: 2 × 4 kN × 2 = 16 kN
  • Efficiency: 91 %

Specifications

  • Weight: 120 g
  • Certification(s): CE EN 12278, UKCA, NFPA 2500 Technical Use
  • Material(s): aluminum, nylon
  • Min. rope diameter: 8 mm
  • Max. rope diameter: 11 mm
  • Sheave type: sealed ball bearings
  • Sheave diameter: 25 mm
  • Maximum working load: 2 × 1,5 kN × 2 = 6 kN
  • Breaking strength: 2 × 4 kN × 2 = 16 kN
  • Efficiency: 91 %
