$1.94

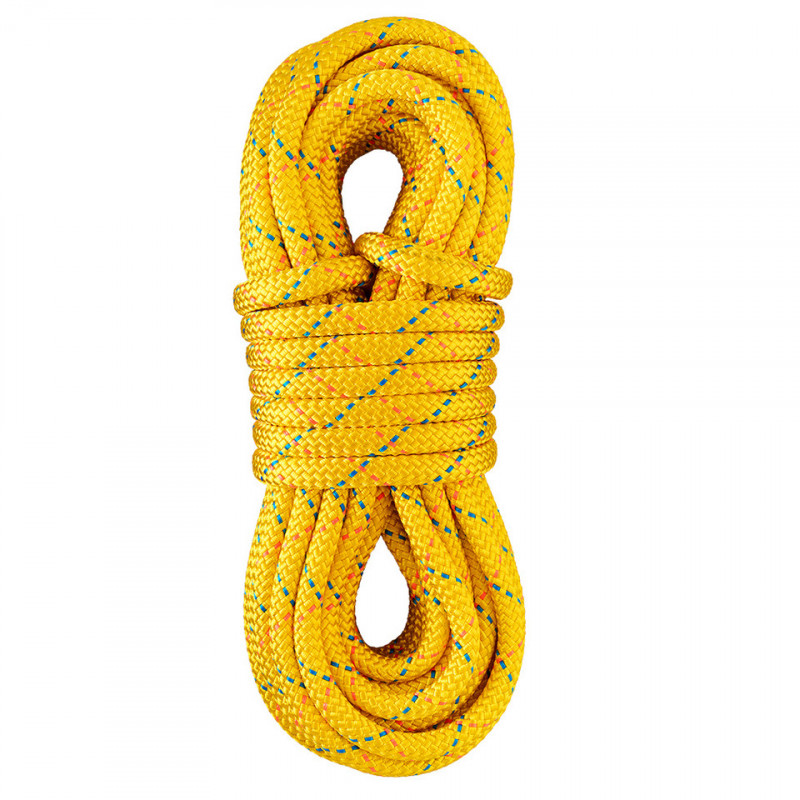

The Sterling 5/8″ Atlas Rigging Line is a durable arbor rigging rope designed to handle dynamic loads while maintaining smooth handling and flexibility. Its nylon core and tightly braided polyester sheath provide strength, energy absorption, and resistance to picking during demanding rigging work. The 5/8 inch Atlas has an ABS rating of 19,400 lb and is well suited for use with Port a Wraps, capstan winches, and rigging blocks. Made in the USA.
In stock
Newly constructed 5/8″ arbor rigging line designed for dynamic rigging loads. Polyester sheath with nylon core. Made in the USA.
The 5/8” Atlas rigging line offers an MBS of 18,000 lbs but still keeps the performance and handling of the thinner-diameter ropes in the series. Like the 1/2” and 9/16”, the 5/8” version has a redesigned double-braid construction that provides a huge increase in overall strength. The new core has lowered the static elongation but still allows rope to absorb energy/impact force and can limit peak forces when catching wood in negative rigging applications. The tightly braided polyester sheath resists picking, and protects the core without sacrificing handling and flexibility. The 5/8”, along with the other diameters in the Atlas series are ideal for use in a Port-a-Wrap, capstan winch or rigging blocks. The Atlas is spliceable or can be ordered with a sewn eye for knotless rigging.
Core/Sheath: Nylon/Polyester
ANSI Z133
Diameter (mm) ABS Rating (kN)
17.0 86.3
Diameter (in) Elongation at 300 lb (%)
5/8 0.4
Weight (lb/100′) Elongation at 10% MBS (%)
13.5 4.5
ABS Rating (lb) Sewn Eye MBS (lb)
19,400 15,250
